Product description

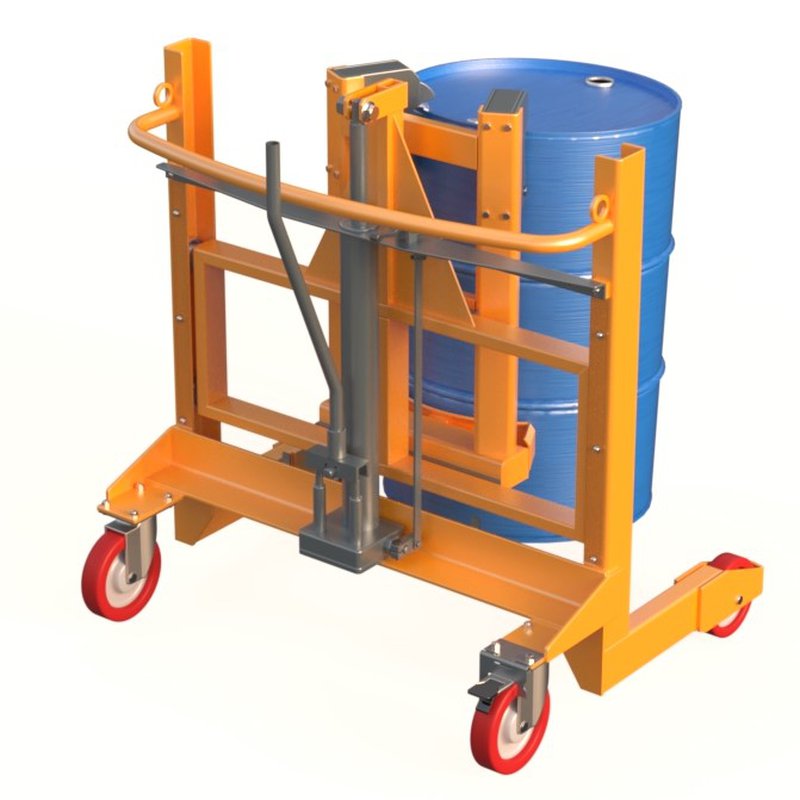

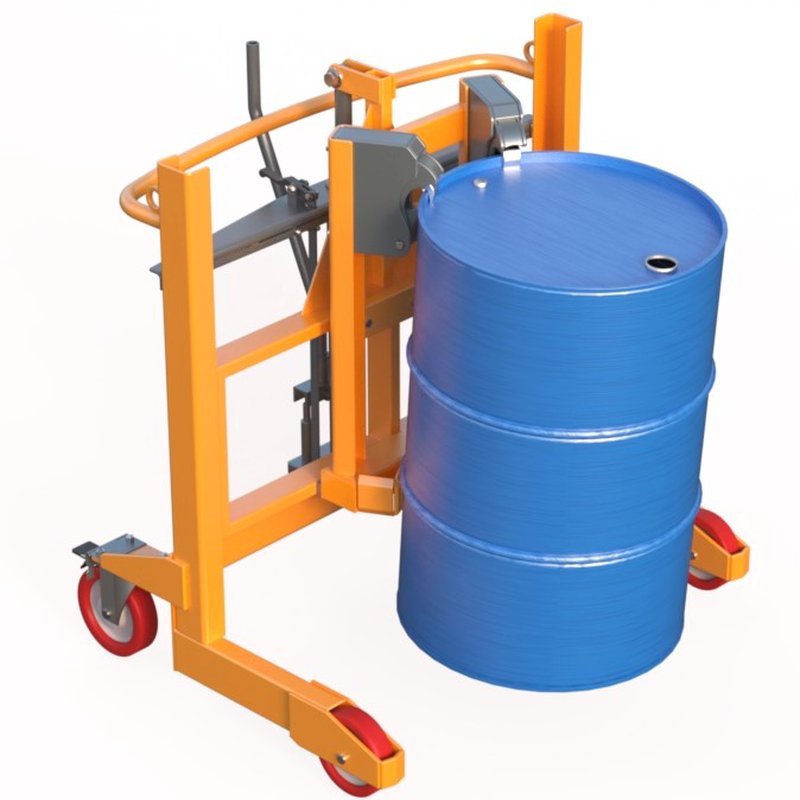

Trolley for a single drum for gripping metal, plastic and cardboard drums at the top edge.

The BS91 Twin double hook trolley, finds its ideal use in the transport of very heavy drums (over 1000 kg) even without a lid, without being deformed.

it is particularly suitable for taking drums from pallets or placing them on scales.

The shape of its profile and grips has been perfected on the basis of 30 years of experience, resulting in an ultra fast and super-safe drum clamping even on uneven terrain, which is why it is particularly appreciated in ports, intermodal hubs and storage areas of large companies. Moreover, the anti-wear (carbonitriding) and anti-corrosion (galvanising + painting) treatments of every detail make it practically indestructible. For this reason VEAB also supplies 3 YEARS of WARRANTY with the trolley.

The drum is automatically hooked with the lifting of the clamp (by means of a manual lever pump) and unhooked, always in automatic mode, once placed on the supporting surface.

Optional items:

Special frame designs

  • Available in both stainless steel and painted steel.
  • Tailored solutions - Custom design for your needs.
  • Reliable experience - Over 30 years of successes.
  • ATEX certification - Possibility to ATEX conversion.
  • Customer support - Immediate answers and solutions.

Technical specifications

Model BS91 TWIN
Capacity 500 kg
Weight 130 kg
Drive Manual traction
Grip Mechanical (automatic)
Lifting Manual with lever pump
Length 850 mm
Width 500/1400 mm
Height 1200/2000 mm
Max. lifting height 600/1400 mm
Turning radius 870 mm
Gripping range D 600 mm
Warranty (years) 3
