Single-column trolley with manual lifting, complete with roll turner
Trolley with turner for roll with maximum weight of 150 kg
Product code: BS120_BLM_RB
Product description

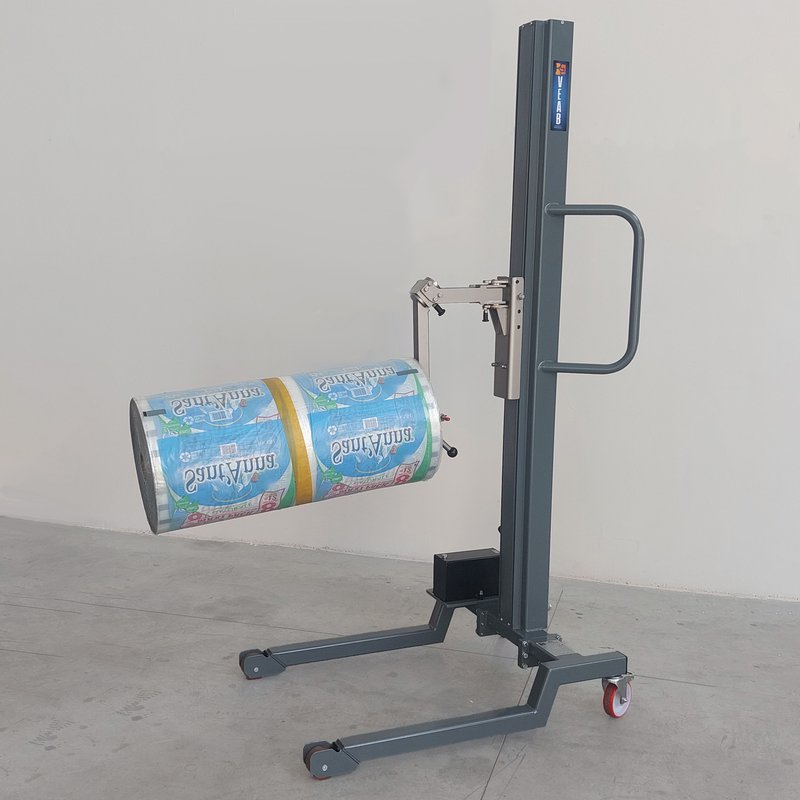

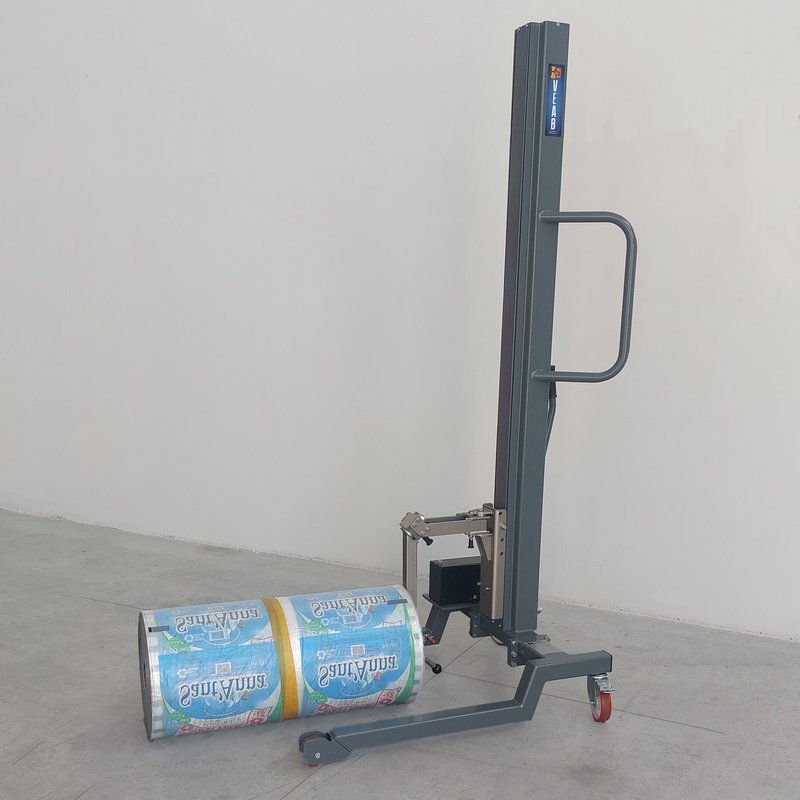

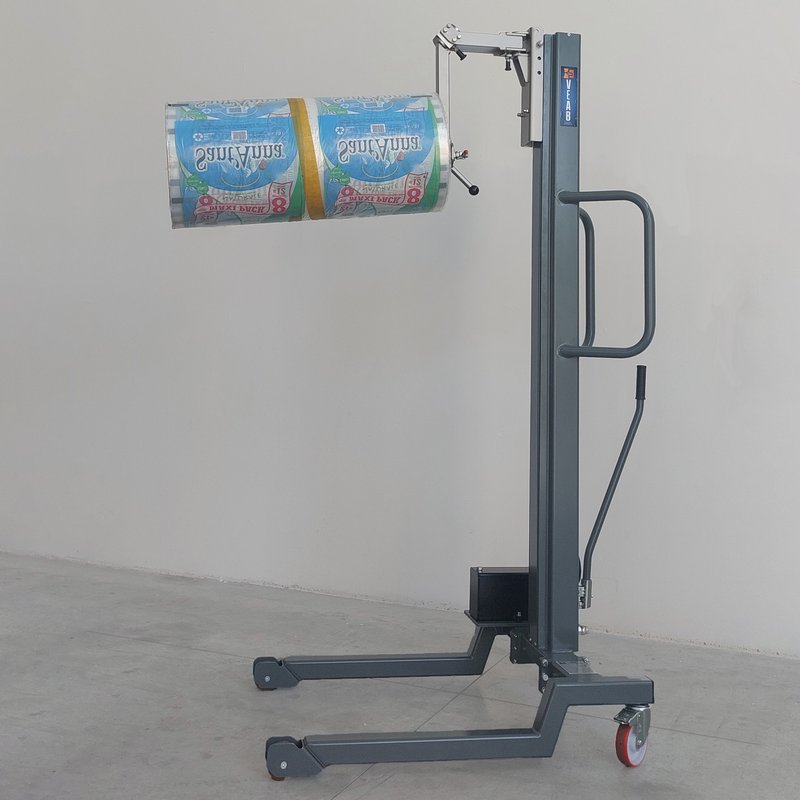

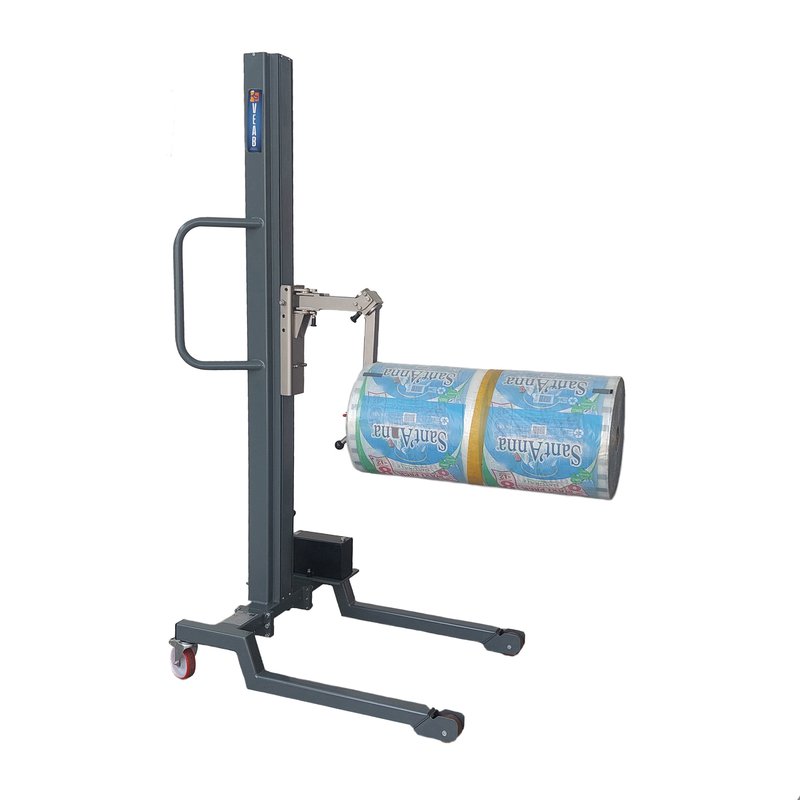

BS120 BLM RB is a trolley with manual lift equipped with an roll turner capable of handling a wide variety of roll/coil with a maximum weight of 150 kg.
The single column at the centre of the trolley offers a good view from all angles and makes it extremely manoeuvrable; it also allows, in the stainless steel version, high quality finishes that can be easily cleaned even with aggressive products.
The roll is hooked through its central hole, thanks to the expansion pin; the taken and released are manually, by means of a handwheel.

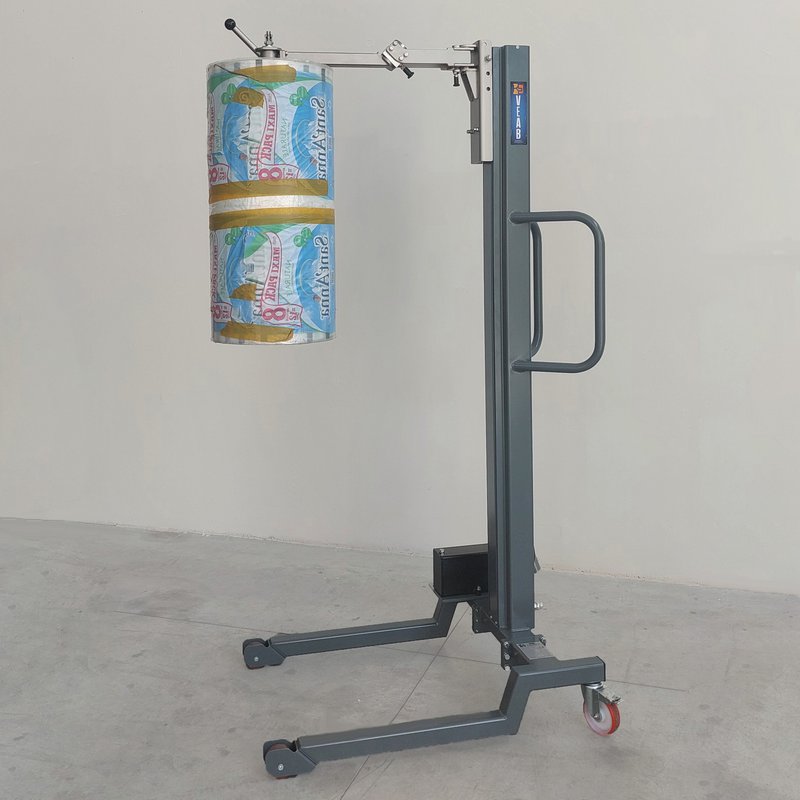

The rotation of the roll takes place manually, after unlocking the rotation arm by pulling a pin.
- Available in both stainless steel and painted steel.
- Tailored solutions - Custom design for your needs.
- Reliable experience - Over 30 years of successes.
- ATEX certification - Possibility to ATEX conversion.
- Customer support - Immediate answers and solutions.
Technical specifications
| Model | BS120 BL MRB |
| Capacity | 150 kg |
| Drive | Manual traction |
| Grip | Manual by handwheel |
| Lifting | Manual with lever pump |
| Max. lifting height | 270/1800 mm |
