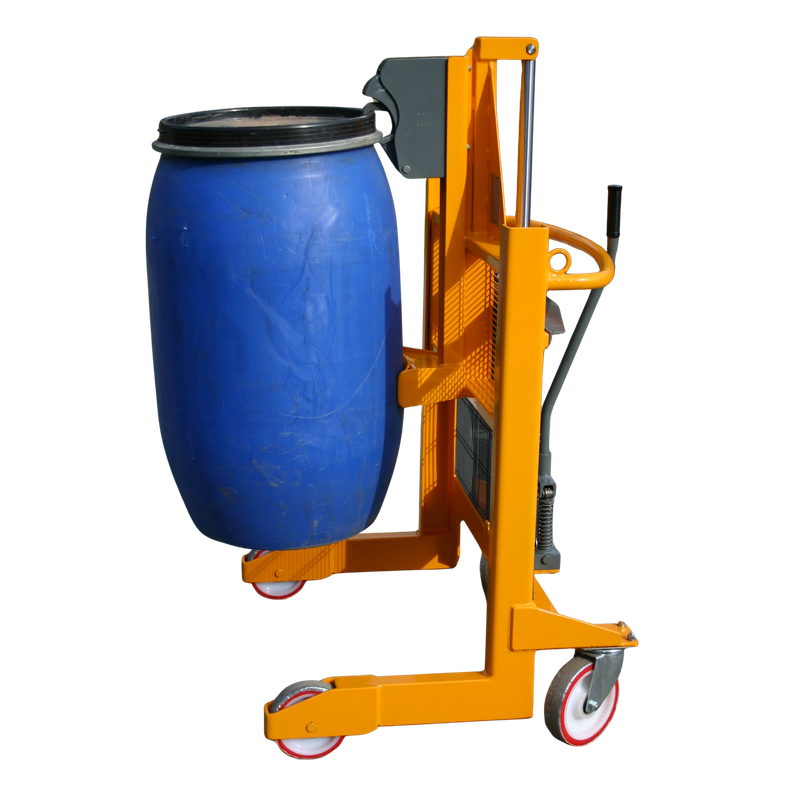

DRUM-HOLDER manual trolley
Trolley for gripping plastic drums, with a removable cover and metal lid, at the top edge
Product code: BS91_P
Product description
Trolley for a single drum for gripping plastic drums with removable cover and metal lid at the top edge.
If you need to handle plastic drums with removable cover and metal lid at the top edge, the BS91 P trolley is the ideal solution in terms of pick-up speed, transport safety and durability; it is particularly suitable for taking drums from pallets or placing them on scales.
The shape of its profile and grips has been perfected on the basis of 30 years of experience, resulting in an ultra fast and super-safe drum clamping even on uneven terrain, which is why it is particularly appreciated in ports, intermodal hubs and storage areas of rarge companies.
Moreover, the anti-wear (carbonitriding) and anti-corrosion (galvanising + painting) treatments of every detail make it practically indestructible. For this reason VEAB also supplies 3 YEARS of WARRANTY with the trolley.
The drum is automatically hooked with the lifting of the clamp (by means of a manual lever pump) and unhooked, always in automatic mode, once placed on the supporting surface.
Optional items:
Special frame designs
- Available in both stainless steel and painted steel.
- Tailored solutions - Custom design for your needs.
- Reliable experience - Over 30 years of successes.
- ATEX certification - Possibility to ATEX conversion.
- Customer support - Immediate answers and solutions.
Technical specifications
| Model | BS91 P |
| Capacity | 500 kg |
| Weight | 130 kg |
| Drive | Manual traction |
| Grip | Mechanical (automatic) |
| Lifting | Manual with lever pump |
| Length | 850 mm |
| Width | 500/1400 mm |
| Height | 1200/2000 mm |
| Max. lifting height | 600/1400 mm |
| Turning radius | 870 mm |
| Gripping range | D 300/700 mm |
| Warranty (years) | 3 |
