Product description

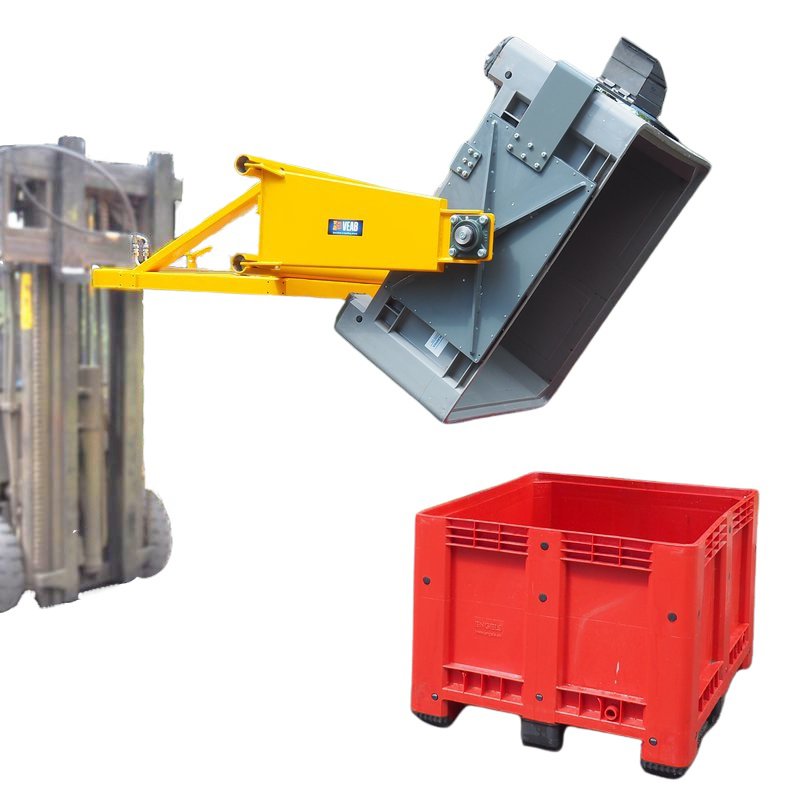

Frontal hydraulic tilter that can be installed on the forks of the forklift, for rotating all types of boxes.

The BS121 FC tilter has been designed to rotate boxes of different diameters and types (iron, plastic, cardboard). The box is hooked up by means of sturdy gripping jaws, completely covered with interchangeable high-adherence rubber, which are hydraulically operated by a pair of cylinders; the hydraulic rotation is always 360° on the front.

Hydraulic actuation of the clamping/release and rotation offers important advantages: first of all it allows the boxes to be moved and rotated without the operator having to leave the forklift; secondly, thanks to the maximum pressure valve, the boxes can always be tightened with the correct clamping pressure (neither too weak nor too high) and last but not least, from a safety point of view, the block valves located on the cylinders keep the boxes tight even in the event of hydraulic pipes being cut.

The tilter is simply and safely secured to the forks by means of the clamping bracket.

  • Available in both stainless steel and painted steel.
  • Tailored solutions - Custom design for your needs.
  • Reliable experience - Over 30 years of successes.
  • ATEX certification - Possibility to ATEX conversion.
  • Customer support - Immediate answers and solutions.

Technical specifications

Model BS121 FC
Application Forklift's forks
Tilter Frontal, hydraulic
Capacity 400 kg
Rotation Hydraulic
Warranty (years) 2
