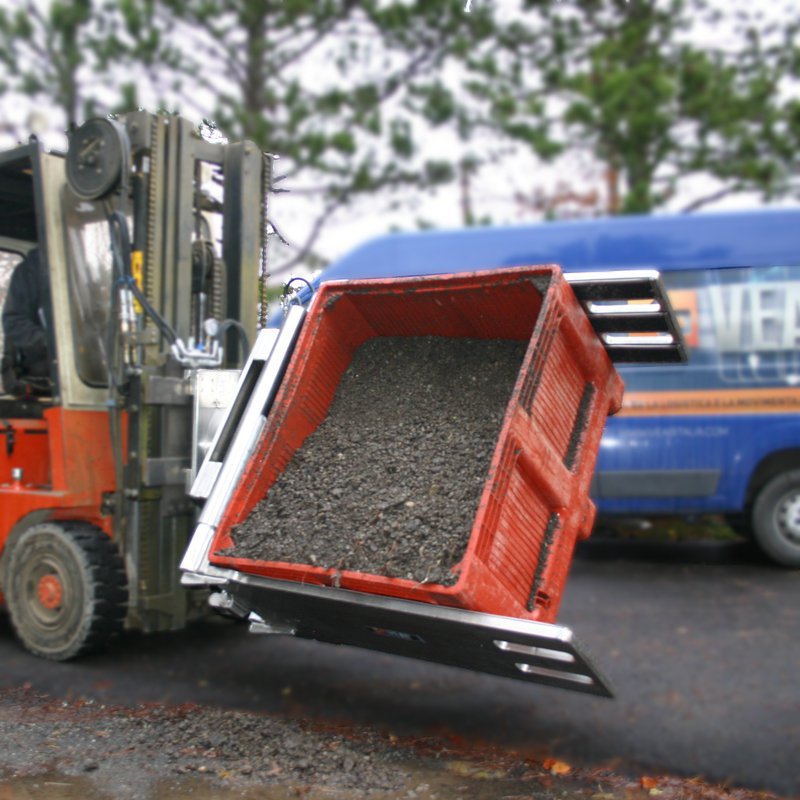

LATERAL hydraulic tilter for boxes and drums

Lateral hydraulic tilter that can be installed on the Fem plate of the forklift, for rotating all types of boxes.

The BS121 N tilter has been designed to rotate boxes and drums of different diameters and types (iron, plastic, cardboard).

The clamping jaws, completely coated with interchangeable high adhesion rubber, are hydraulically driven by a pair of oleodynamic cylinders; the entirely hydraulic rotation is continuous at right/left side by 360°.

Hydraulic actuation of the clamping/release and rotation offers important advantages: first of all it allows the boxes/drums to be moved and rotated without the operator having to leave the forklift; secondly, thanks to the maximum pressure valve, the boxes/drum can always be tightened with the correct clamping pressure (neither too weak nor too high) and last but not least, from a safety point of view, the block valves located on the cylinders keep the boxes/drums tight even in the event of hydraulic pipes being cut.

The tilter is simply and safely secured to the forklift plate by means of the clamping bracket.
